General Description

APA102 is a type ic for the three color RGB Diming control strip and string ,

This ic using the CMOS process to provide three- color RGB LED output driver to

adjust the output with 256 gray scale and 32 brightness adjustment ,APA with 2 signal

output way , one is clock ,another is data, the clock and data is synchronizated

,so that the crystal cascade piece of output movement is sychronizated .

Feature

CMOS process,low voltage ,low consumption

Synchronization of two-lane

Choose positive output or negative RGB three-color LED output

8 bit(256 level) color set ,5bit(32 level) brightness adjustment

Build-20ma constant current output

With self-detection signal build in support for continuous oscillation PWM

output ,can be maintained static screen

Application

LED lamp

LED Strip ,led pixel module

LED billboard LED screen

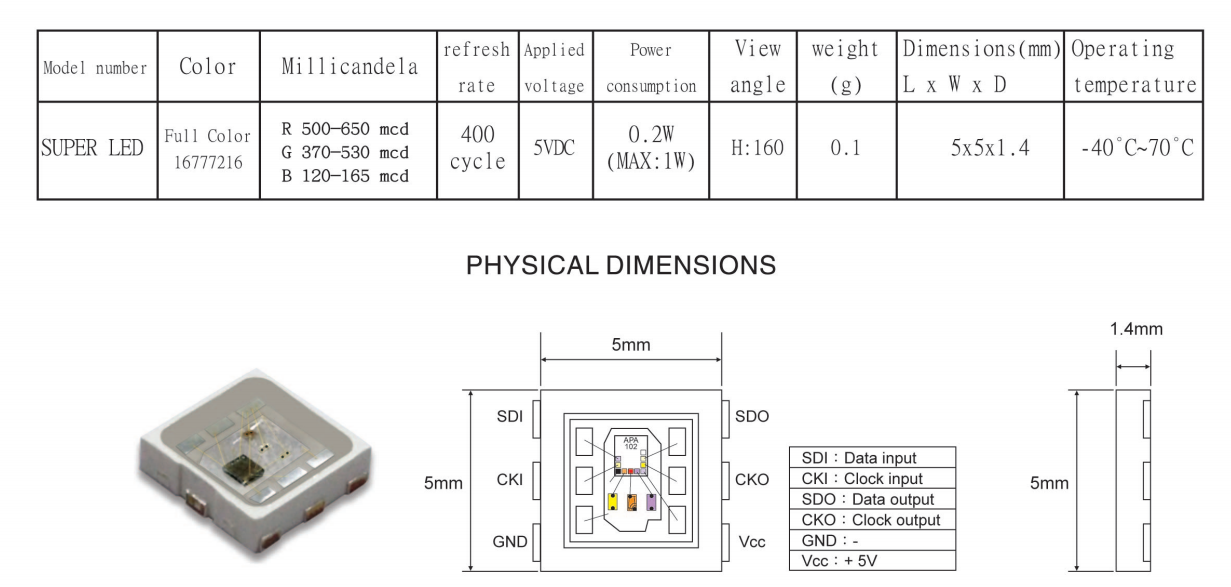

PRODUCT SPECIFICATIONS
