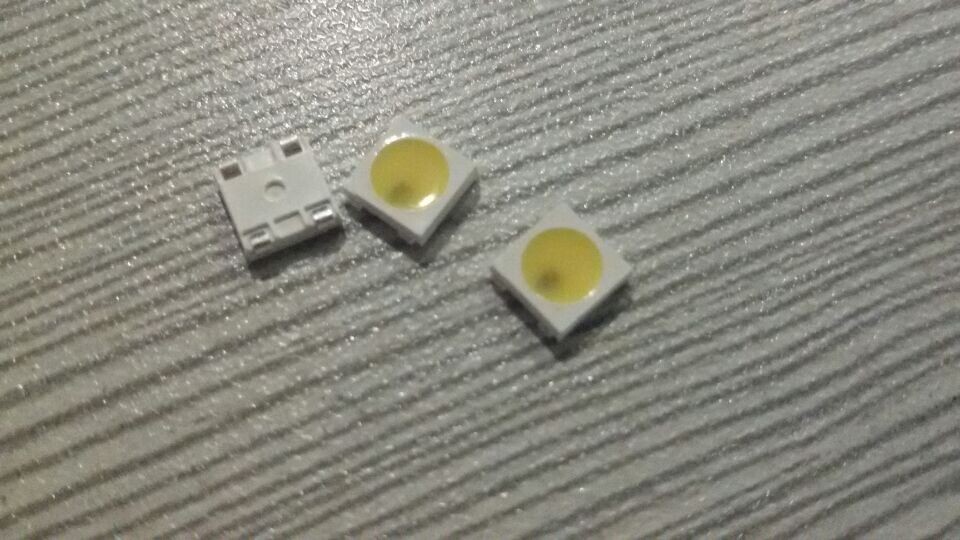

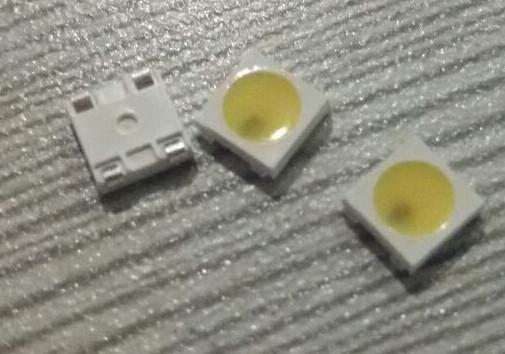

APA104 LED CHIP

Features and Benefits

-lIntelligent reverse connect protection, the power supply reverse connection does not damage the IC.

-The control circuit and the LED share the only power source.

-Control circuit and White chip are integrated in a package of 5050 components, form a complete control of pixel point.

-Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.

-Built-in electric reset circuit and power lost reset circuit.

Each pixel of the three primary color can achieve 256 brightness display, full color display, and scan frequency not less than 400Hz/s.

-Cascading port transmission signal by single line.

-Any two point the distance more than 5m transmission signal without any increase circuit.

-When the refresh rate is 30fps, cascade number are not less than1024 points.

-Send data at speeds of 800Kbps.

-The color of the light were highly consistent, cost-effective..

Applications

-White module, White color soft lights a lamp strip.

-LED decorative lighting, Indoor/outdoor LED video irregular screen.

General description

APA104 is a intelligent control led light source that the control circuit and rgb chipare integrated in a package of 5050

components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also

include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring

the pixel point light colo height consistent. The data transfer protocol use single NZR communication mode.After the pixel

power- on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal

data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade

pixel through the DO port.After transmission for each pixel,the signalto reduce 24bit. pixel adopt auto resha- ping transmitte

tenology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal

transmission. LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle

is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming

more simple circuit, small volume, convenient nstallation.
