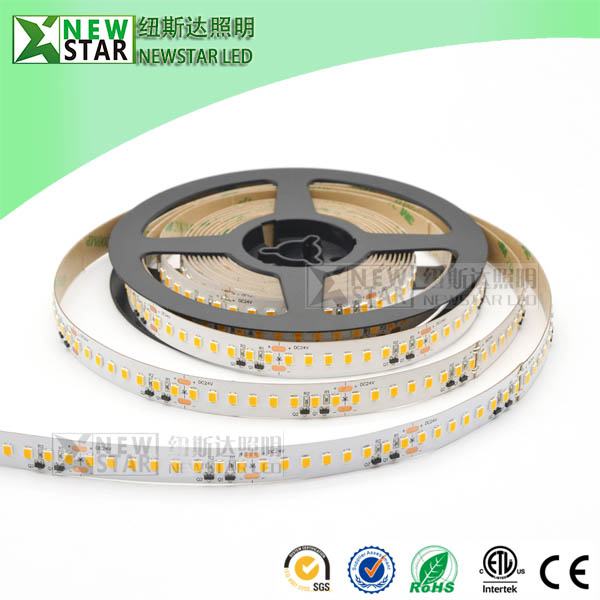

160lm/W High Efficiency Flexible Strips Constant Current DC24V 2835smd Led Striplights for linear lighting design

We Newstar's High efficiency 2835smd strips constant current circuit design to realize 160lm/w led strip lights, to achieving high lumen efficiency requirements. Newstar's 2835 SMD LED strips series is high brightness LED Strip, reach 24~26lm each LED, our SMD2835 Flexible Strips has over 80 to 90 in its CRI, and 90RA 95RA or more than 97RA are also available.

High Efficiency 160lm/w 2835smd constant current 64leds/m led strip lights

Technical Parameters

• Product Name: High Efficiency 160lm/w 2835smd constant current 64leds/m led strip lights
• Model No: NSS-2835-64HE
• Led Type: SMD2835
• Led Quantity: 64Leds/M
• Lumen/Meter: 1584-1663lm/Meter
• Actual Power(w/m): 9.6W/Meter
• CRI(Ra): >80
• Luminous Efficiency: >160Lm/W
• PCB Width: 10mm
• Voltage: DC24V
• Cuttable size: 125mm/24v
• Color: Warm white/Natural white/Cool white
• CCT(K): 2700K~6000K
• IP Grade: IP65/IP67/IP68
• Beam Angle: 120°
• Ambient Temperature: -25℃ ~ +45℃
• Warranty: 5-year or 30000hr whichever comes first
• Length: 5Meter/Roll

High Efficiency 160lm/w 2835smd constant current 80leds/m led strip lights

Technical Parameters

• Product Name: High Efficiency 160lm/w 2835smd constant current 80leds/m led strip lights
• Model No: NSS-2835-80HE
• Led Type: SMD2835
• Led Quantity: 80Leds/M
• Lumen/Meter: 1972-2070lm/Meter
• Actual Power: (w/m)12W/Meter
• CRI(Ra): >80
• Luminous Efficiency: >160Lm/W
• PCB Width: 10mm
• Voltage: DC24V
• Cuttable size: 100mm/24v
• Color: Warm white/Natural white/Cool white
• CCT(K): 2700K~6000K
• IP Grade: IP65/IP67/IP68
• Beam Angle: 120°
• Ambient Temperature: -25℃ ~ +45℃
• Warranty: 5-year or 30000hr whichever comes first
• Length: 5Meter/Roll

High Efficiency 160lm/w 2835SMD constant current 128leds/m led strip lights

Technical Parameters

• Product Name: High Efficiency 160lm/w 2835smd constant current 128leds/m led strip lights
• Model No: NSS-2835-128HE
• Led Type: SMD2835
• Led Quantity: 128Leds/M
• Lumen/Meter: 2896-3040lm/Meter
• Actual Power(w/m): 18W/Meter
• CRI(Ra): >80
• Luminous Efficiency: >160Lm/W
• PCB Width: 12mm
• Voltage: DC24V

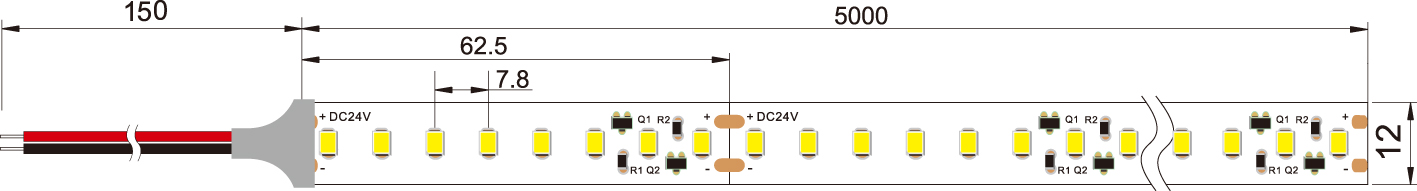

• Cuttable size: 62.5mm/24v
• Color: Warm white/Natural white/Cool white
• CCT(K): 2700K~6000K
• IP Grade: IP65/IP67/IP68
• Beam Angle: 120°
• Ambient Temperature: -25℃ ~ +45℃
• Warranty: 5-year or 30000hr whichever comes first
• Length: 5Meter/Roll

High Efficiency 160lm/w 2835SMD constant current 160leds/m led strip lights

Technical Parameters

• Product Name: High Efficiency 160lm/w 2835smd constant current 160leds/m led strip lights
• Model No: NSS-2835-160HE
• Led Type: SMD2835
• Led Quantity: 160Leds/M
• Lumen/Meter: 3381-3550lm/Meter
• Actual Power: (w/m)21W/Meter
• CRI(Ra): >80
• Luminous Efficiency: >160Lm/W
• PCB Width: 12mm
• Voltage: DC24V
• Cuttable size: 50mm/24v
• Color: Warm white/Natural white/Cool white
• CCT(K): 2700K~6000K
• IP Grade: IP65/IP67/IP68
• Beam Angle: 120°
• Ambient Temperature: -25℃ ~ +45℃
• Warranty: 5-year or 30000hr whichever comes first
• Length: 5Meter/Roll
